Application Field: 5G Signal Testing

Material: RO4350B + TU768

Number of Layers: 4L (4 layers)

Board Thickness: 1.6mm

Minimum Line Width/Spacing: 100/100um

Surface Finish: ENIG

Thickness: 0.05um

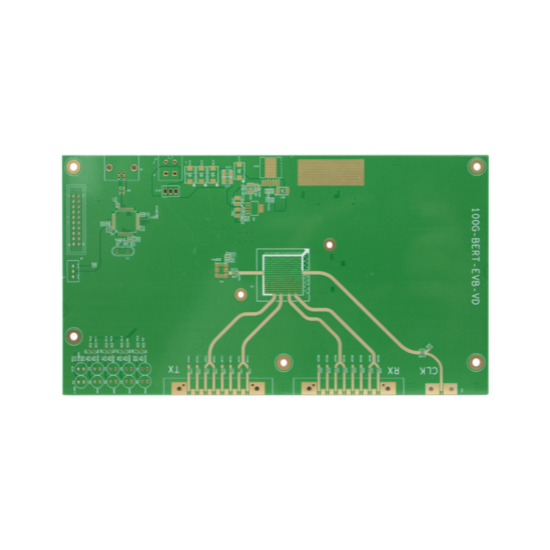

    The 5G signal testing PCB board is one of the series of high-frequency PCB circuit boards developed and produced by Shenzhen Huaxinsheng Circuit Co., Ltd. This type of circuit board is made of RO4350B+TU768 material and manufactured through processes such as lamination, mechanical drilling, and immersion gold plating. The minimum hole diameter can reach 0.2mm, and the minimum line width/spacing is 100/100um. This PCB circuit board is widely used in the field of 5G signal testing.

Supply of commonly used high frequency plate:

    ROGERS, TACONIC series, high frequency microwave PTFE wire board, Teflon, PTFE wire board

Common stock materials:

     Rogers 4000 Series: RO4350B / RO4003C Thickness: 0.2, 0.254, 0.308, 0.508, 0.762, 0.813, 1.524

     We need to confirm the delivery date to the supplier of the plate without inventory, the supplier has inventory delivery date in 1-5 days, no inventory need to confirm the delivery date to the supplier.

     All high frequency plates can be mixed with FR4 plates and PP, and the Rogers 4000 series can be combined with RO4350BPF.

     I. Rogers Rogers high frequency board material if:

RO4003C、RO4350B、RO4360、RO4533、RO4535、RO4730、RO4232、RO4233、RO3003、RO3006、RO3010、RO3035、RO3203、RO3206、RO3210、RO3730、RO5780、RO5880、RO6002、RO3202、RO6006

     II. TACONIC material models are as follows:

TLY-5A、TLY-5、TLY-3、HT1.5、TLX-0、TLX-9、TLX-8、TLX-7、TLX-6、TLC-27、TLE-95、TLC-30、TPG-30、TLG-30、RF-30、TSM-30、TLC-32、TPG32、TLG-32、TLG-34、TPG35、TLG-35、RF-35、RF-35A、RF-35P、RF-41、RF-43、RF-45、RF-60A、CER-10

    III. ARLON high frequency board materials are as follows:

AD255 C03099、AD255 C06099、AD255C04099、AD300C03099、AD300 C04099AD300 C06009、TC600、AD250 C02055C、TC350、MCG300CG、DCL220、CUCLAD 217LXCUCLAD 250GX、ARLON 55NT

   IV. Wangling and Taixing high frequency plate materials are as follows:

F4BK225、F4BK265、F4BK300、F4BK350、F4BM220、F4BM255、F4BM265F4BM300、F4BM350
