Application Field: Digital Products and Automotive Electronics
Material: TU-883
Number of Layers: 22
Board Thickness: 1.6±0.16mm
Minimum Hole Diameter: Laser Drilled Holes 0.1mm; Mechanical Holes 0.275mm
Minimum Line Width/Spacing: 100/100um
Minimum Board Thickness to Hole Diameter Ratio: 12:1
Surface Finished:ENIG

Thickness 0.05um

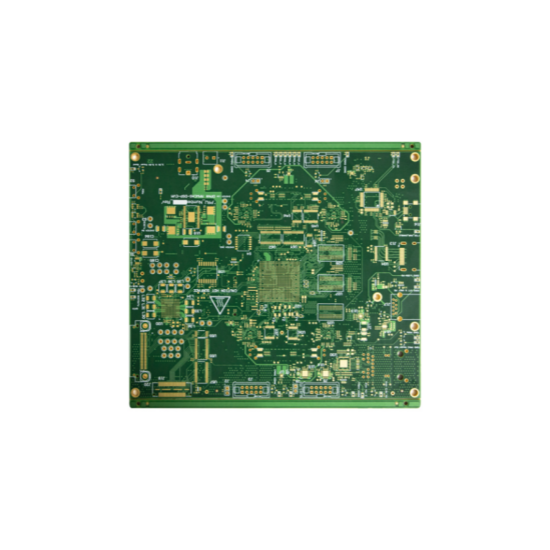

  The 2nd-level HDI board is one of the series of 2nd-level HDI PCBs developed and produced by Shenzhen Huaxinsheng Circuit Co., Ltd. It is made of Taiyao TU-883 material and manufactured through processes such as immersion gold plating and laser or mechanical drilling, with a minimum hole diameter of 0.1mm and minimum line width/spacing of 100um. This type of HDI board is widely used in digital products and automotive electronics fields.

Supply of commonly used high frequency plate:

    ROGERS, TACONIC series, high frequency microwave PTFE wire board, Teflon, PTFE wire board

Common stock materials:

     Rogers 4000 Series: RO4350B / RO4003C Thickness: 0.2, 0.254, 0.308, 0.508, 0.762, 0.813, 1.524

     We need to confirm the delivery date to the supplier of the plate without inventory, the supplier has inventory delivery date in 1-5 days, no inventory need to confirm the delivery date to the supplier.

     All high frequency plates can be mixed with FR4 plates and PP, and the Rogers 4000 series can be combined with RO4350BPF.

     I. Rogers Rogers high frequency board material if:

RO4003C、RO4350B、RO4360、RO4533、RO4535、RO4730、RO4232、RO4233、RO3003、RO3006、RO3010、RO3035、RO3203、RO3206、RO3210、RO3730、RO5780、RO5880、RO6002、RO3202、RO6006

     II. TACONIC material models are as follows:

TLY-5A、TLY-5、TLY-3、HT1.5、TLX-0、TLX-9、TLX-8、TLX-7、TLX-6、TLC-27、TLE-95、TLC-30、TPG-30、TLG-30、RF-30、TSM-30、TLC-32、TPG32、TLG-32、TLG-34、TPG35、TLG-35、RF-35、RF-35A、RF-35P、RF-41、RF-43、RF-45、RF-60A、CER-10

    III. ARLON high frequency board materials are as follows:

AD255 C03099、AD255 C06099、AD255C04099、AD300C03099、AD300 C04099AD300 C06009、TC600、AD250 C02055C、TC350、MCG300CG、DCL220、CUCLAD 217LXCUCLAD 250GX、ARLON 55NT

   IV. Wangling and Taixing high frequency plate materials are as follows:

F4BK225、F4BK265、F4BK300、F4BK350、F4BM220、F4BM255、F4BM265F4BM300、F4BM350
