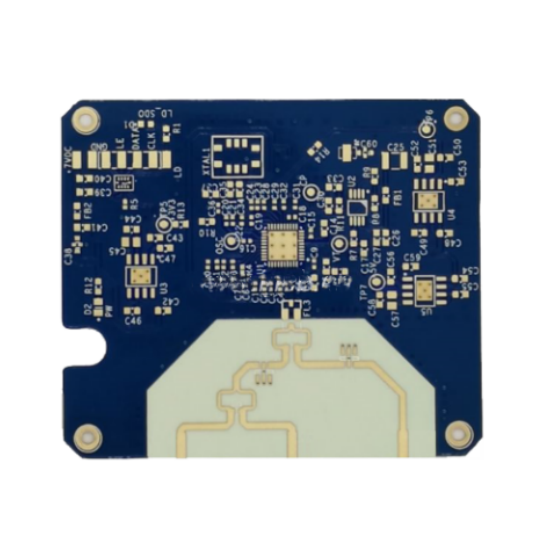

Product Name: Rogers RO4350B High-Frequency Board
Material: Rogers RO4350B
Board Thickness: 1.65mm
Number of Layers: 2 layers
Dielectric Constant: 3.48
Dissipation Factor: 0.0004 (1 MHz), 0.0009 (10 GHz)
Dielectric Thickness: 1.524mm
Tg: >280°C
Td: 390°C
Flame Retardant Rating: V-0
Thermal Conductivity: 0.69 W/m·K
Density: 1.86 g/cm³
Surface Finish: Immersion Gold
Minimum Line Width/Spacing: 4mil/4mil
Copper Thickness: Base Copper 0.50OZ, Finished Copper Thickness 1OZ
Application: RF Communication Instruments
