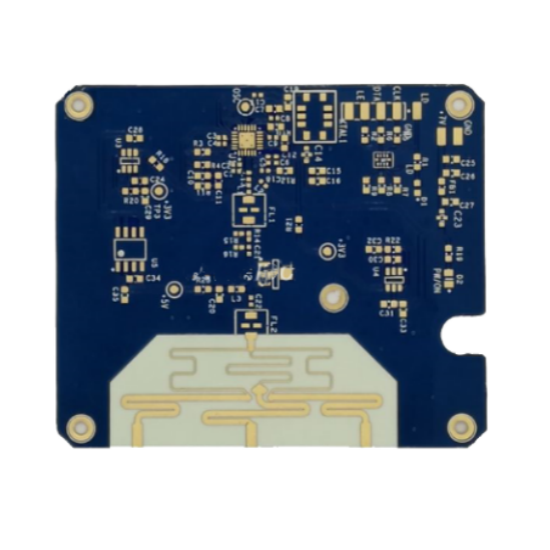

Product Name: Rogers RO3003 High-Frequency Board
Material: Rogers RO3003
Board Thickness: 0.65mm
Number of Layers: 2 layers
Dielectric Constant: 3.0
Dissipation Factor: 0.0010
Dielectric Thickness: 0.508mm
Td: 500
Flammability Rating: V-0
Thermal Conductivity: 0.5w/m.k
Density: 2.1gm/cm³
Copper Thickness: Finished copper thickness 10Z
Surface Finish: Immersion Gold
Application: Communication instruments, automotive radar, RF couplers, radar level gauges, aerospace and defense industries, etc.
