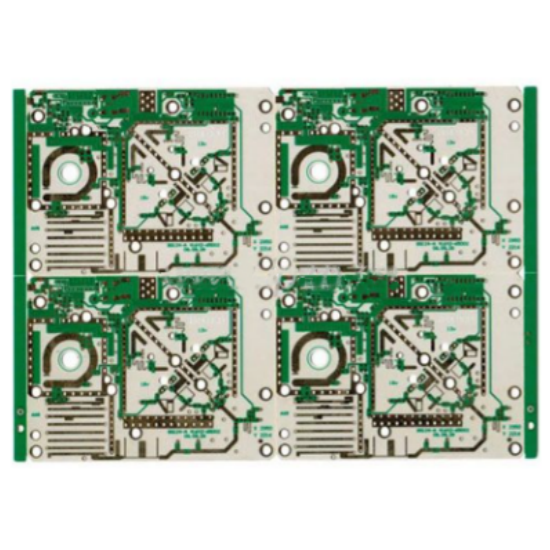

Product Name: Rogers RO3003 High-Frequency Board
Material: Ceramic-filled PTFE Composite (Rogers RO3003)
Dielectric Constant: 3.0 ± 0.04
Number of Layers: 2 layers
Dielectric Thickness: 0.762mm (30mil)
Finished Board Thickness: 0.85mm
Base Material Copper Thickness: ½ (17um) HH/HH
Finished Copper Thickness: 10Z (35μm)
Surface Finish: Chemical Immersion Gold
Application: Automotive radar, RF couplers, radar level gauges, aerospace and defense industries, etc.
