Application Field: RF Antenna
Material: Rogers RO4350B + Taiyao TU-768
Number of Layers: 12L
Board Thickness: 1.7±0.17mm
Minimum Hole Diameter for Mechanical Holes: 0.2mm
Minimum Line Width/Spacing: 110/90um
Minimum Board Thickness to Hole Diameter Ratio: 8.5:1
Surface Finished: ENIG

Thickness: 0.05um

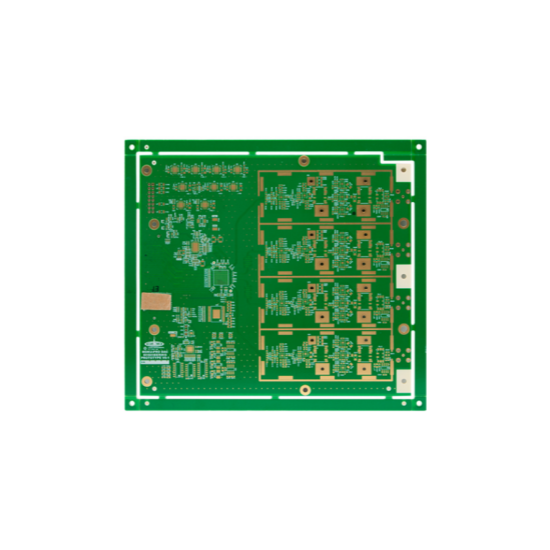

  The 12-layer RF PCB circuit board is one of the series of high-layer PCB circuit boards developed and produced by Shenzhen Huaxinsheng Circuit Co., Ltd. It is manufactured using high-speed materials such as (Note: there's a discrepancy here, should be "Rogers RO4350B + Taiyao TU-768" instead of "Panasonic R5775G + ITEQ IT180" based on the provided information) Rogers RO4350B and Taiyao TU-768, through processes such as mixed lamination, embedded resistors, and immersion gold plating. It is widely used as an RF antenna in the field of communication equipment.

Supply of commonly used high frequency plate:

    ROGERS, TACONIC series, high frequency microwave PTFE wire board, Teflon, PTFE wire board

Common stock materials:

     Rogers 4000 Series: RO4350B / RO4003C Thickness: 0.2, 0.254, 0.308, 0.508, 0.762, 0.813, 1.524

     We need to confirm the delivery date to the supplier of the plate without inventory, the supplier has inventory delivery date in 1-5 days, no inventory need to confirm the delivery date to the supplier.

     All high frequency plates can be mixed with FR4 plates and PP, and the Rogers 4000 series can be combined with RO4350BPF.

     I. Rogers Rogers high frequency board material if:

RO4003C、RO4350B、RO4360、RO4533、RO4535、RO4730、RO4232、RO4233、RO3003、RO3006、RO3010、RO3035、RO3203、RO3206、RO3210、RO3730、RO5780、RO5880、RO6002、RO3202、RO6006

     II. TACONIC material models are as follows:

TLY-5A、TLY-5、TLY-3、HT1.5、TLX-0、TLX-9、TLX-8、TLX-7、TLX-6、TLC-27、TLE-95、TLC-30、TPG-30、TLG-30、RF-30、TSM-30、TLC-32、TPG32、TLG-32、TLG-34、TPG35、TLG-35、RF-35、RF-35A、RF-35P、RF-41、RF-43、RF-45、RF-60A、CER-10

    III. ARLON high frequency board materials are as follows:

AD255 C03099、AD255 C06099、AD255C04099、AD300C03099、AD300 C04099AD300 C06009、TC600、AD250 C02055C、TC350、MCG300CG、DCL220、CUCLAD 217LXCUCLAD 250GX、ARLON 55NT

   IV. Wangling and Taixing high frequency plate materials are as follows:

F4BK225、F4BK265、F4BK300、F4BK350、F4BM220、F4BM255、F4BM265F4BM300、F4BM350
