Application Field: Digital Products and Automotive Electronics
Material: Panasonic R5775G + ITEQ IT180
Number of Layers: 8L
Board Thickness: 2.0±0.2mm
Minimum Hole Diameter: Laser Blind Vias 0.1mm, Mechanical Holes 0.2mm
Minimum Line Width/Spacing: 75/75um
Minimum Board Thickness to Hole Diameter Ratio: 10:1
Surface Finished: ENIG,

Thickness: 0.05um

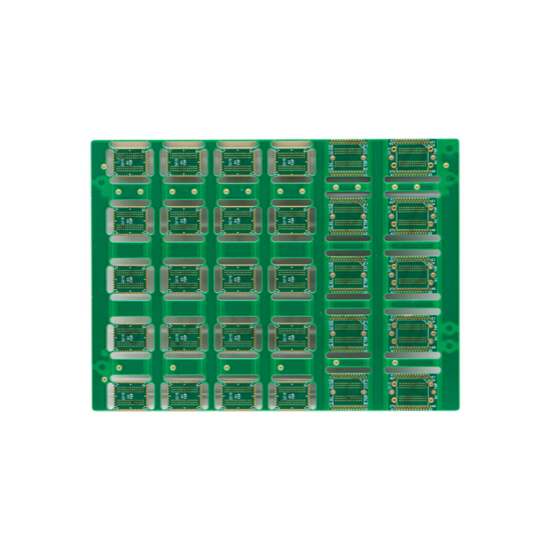

  The 3rd-level HDI embedded resistor circuit board is one of the series of 3rd-level HDI PCB circuit boards developed and produced by Shenzhen Huaxinsheng Circuit Co., Ltd. It is manufactured using high-speed materials from Panasonic R5775G and ITEQ IT180, through processes such as mixed lamination, embedded resistors, and immersion gold plating. The product is widely used in digital products like mobile phones and cameras, as well as in the automotive electronics field.

Supply of commonly used high frequency plate:

    ROGERS, TACONIC series, high frequency microwave PTFE wire board, Teflon, PTFE wire board

Common stock materials:

     Rogers 4000 Series: RO4350B / RO4003C Thickness: 0.2, 0.254, 0.308, 0.508, 0.762, 0.813, 1.524

     We need to confirm the delivery date to the supplier of the plate without inventory, the supplier has inventory delivery date in 1-5 days, no inventory need to confirm the delivery date to the supplier.

     All high frequency plates can be mixed with FR4 plates and PP, and the Rogers 4000 series can be combined with RO4350BPF.

     I. Rogers Rogers high frequency board material if:

RO4003C、RO4350B、RO4360、RO4533、RO4535、RO4730、RO4232、RO4233、RO3003、RO3006、RO3010、RO3035、RO3203、RO3206、RO3210、RO3730、RO5780、RO5880、RO6002、RO3202、RO6006

     II. TACONIC material models are as follows:

TLY-5A、TLY-5、TLY-3、HT1.5、TLX-0、TLX-9、TLX-8、TLX-7、TLX-6、TLC-27、TLE-95、TLC-30、TPG-30、TLG-30、RF-30、TSM-30、TLC-32、TPG32、TLG-32、TLG-34、TPG35、TLG-35、RF-35、RF-35A、RF-35P、RF-41、RF-43、RF-45、RF-60A、CER-10

    III. ARLON high frequency board materials are as follows:

AD255 C03099、AD255 C06099、AD255C04099、AD300C03099、AD300 C04099AD300 C06009、TC600、AD250 C02055C、TC350、MCG300CG、DCL220、CUCLAD 217LXCUCLAD 250GX、ARLON 55NT

   IV. Wangling and Taixing high frequency plate materials are as follows:

F4BK225、F4BK265、F4BK300、F4BK350、F4BM220、F4BM255、F4BM265F4BM300、F4BM350
