Application Field: Testing
Material: Shengyi S1000-2M
Number of Layers: 10L
Board Thickness: 1.3±0.13mm
Minimum Hole Diameter for Laser Blind Vias: 0.1mm
Minimum Line Width/Spacing: 65/65um
Minimum Board Thickness to Hole Diameter Ratio: 12:1
Surface Finished: Immersion Nickel-Palladium-Gold, Thickness: 3u"

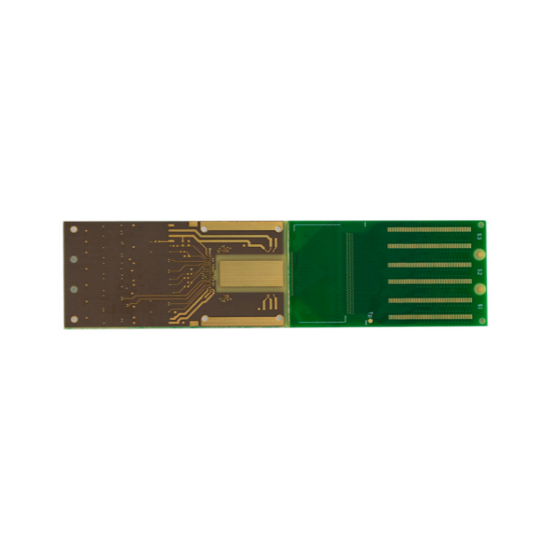

  The 2nd-level HDI PCB for testing is one of the series of 2nd-level HDI PCB circuit boards developed and produced by Shenzhen Huaxinsheng Circuit Co., Ltd. This HDI board is manufactured using Shengyi S1000-2M material and processes such as immersion nickel-palladium-gold plating and laser blind via drilling. With a minimum line width/spacing of 65/65um, it is the optimal choice for related testing industries.

Supply of commonly used high frequency plate:

    ROGERS, TACONIC series, high frequency microwave PTFE wire board, Teflon, PTFE wire board

Common stock materials:

     Rogers 4000 Series: RO4350B / RO4003C Thickness: 0.2, 0.254, 0.308, 0.508, 0.762, 0.813, 1.524

     We need to confirm the delivery date to the supplier of the plate without inventory, the supplier has inventory delivery date in 1-5 days, no inventory need to confirm the delivery date to the supplier.

     All high frequency plates can be mixed with FR4 plates and PP, and the Rogers 4000 series can be combined with RO4350BPF.

     I. Rogers Rogers high frequency board material if:

RO4003C、RO4350B、RO4360、RO4533、RO4535、RO4730、RO4232、RO4233、RO3003、RO3006、RO3010、RO3035、RO3203、RO3206、RO3210、RO3730、RO5780、RO5880、RO6002、RO3202、RO6006

     II. TACONIC material models are as follows:

TLY-5A、TLY-5、TLY-3、HT1.5、TLX-0、TLX-9、TLX-8、TLX-7、TLX-6、TLC-27、TLE-95、TLC-30、TPG-30、TLG-30、RF-30、TSM-30、TLC-32、TPG32、TLG-32、TLG-34、TPG35、TLG-35、RF-35、RF-35A、RF-35P、RF-41、RF-43、RF-45、RF-60A、CER-10

    III. ARLON high frequency board materials are as follows:

AD255 C03099、AD255 C06099、AD255C04099、AD300C03099、AD300 C04099AD300 C06009、TC600、AD250 C02055C、TC350、MCG300CG、DCL220、CUCLAD 217LXCUCLAD 250GX、ARLON 55NT

   IV. Wangling and Taixing high frequency plate materials are as follows:

F4BK225、F4BK265、F4BK300、F4BK350、F4BM220、F4BM255、F4BM265F4BM300、F4BM350
