Number of layers: 24

Board thickness: 5.0mm

Minimum line width/spacing: 10/4.4MIL

Surface finish: Thick flash gold

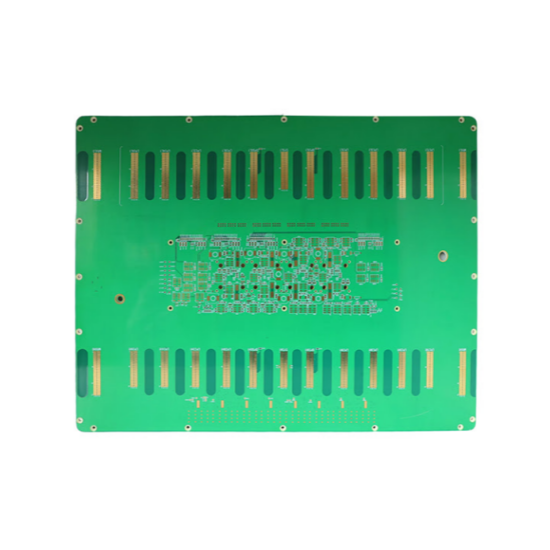

     A 24-layer ATE test board is one of the series of semiconductor test PCB circuit boards developed and produced by Shenzhen Huaxinsheng Circuit Co., Ltd., applied in the field of Integrated Circuit (IC) Automatic Test Equipment. This semiconductor test PCB board is manufactured using Shengyi S1000-2M material with a thick gold plating surface finish process, and features a minimum hole diameter of 0.4mm, making it an ideal circuit board product for the semiconductor testing field.

Supply of commonly used high frequency plate:

    ROGERS, TACONIC series, high frequency microwave PTFE wire board, Teflon, PTFE wire board

Common stock materials:

     Rogers 4000 Series: RO4350B / RO4003C Thickness: 0.2, 0.254, 0.308, 0.508, 0.762, 0.813, 1.524

     We need to confirm the delivery date to the supplier of the plate without inventory, the supplier has inventory delivery date in 1-5 days, no inventory need to confirm the delivery date to the supplier.

     All high frequency plates can be mixed with FR4 plates and PP, and the Rogers 4000 series can be combined with RO4350BPF.

     I. Rogers Rogers high frequency board material if:

RO4003C、RO4350B、RO4360、RO4533、RO4535、RO4730、RO4232、RO4233、RO3003、RO3006、RO3010、RO3035、RO3203、RO3206、RO3210、RO3730、RO5780、RO5880、RO6002、RO3202、RO6006

     II. TACONIC material models are as follows:

TLY-5A、TLY-5、TLY-3、HT1.5、TLX-0、TLX-9、TLX-8、TLX-7、TLX-6、TLC-27、TLE-95、TLC-30、TPG-30、TLG-30、RF-30、TSM-30、TLC-32、TPG32、TLG-32、TLG-34、TPG35、TLG-35、RF-35、RF-35A、RF-35P、RF-41、RF-43、RF-45、RF-60A、CER-10

    III. ARLON high frequency board materials are as follows:

AD255 C03099、AD255 C06099、AD255C04099、AD300C03099、AD300 C04099AD300 C06009、TC600、AD250 C02055C、TC350、MCG300CG、DCL220、CUCLAD 217LXCUCLAD 250GX、ARLON 55NT

   IV. Wangling and Taixing high frequency plate materials are as follows:

F4BK225、F4BK265、F4BK300、F4BK350、F4BM220、F4BM255、F4BM265F4BM300、F4BM350
