Application Field: Semiconductor Testing
Material: Shengyi S1000-2M
Number of Layers: 10L
Board Thickness: 2.2±0.2mm
Minimum Hole Diameter for Mechanical Holes: 0.2mm
Minimum Line Width/Spacing: 200/110um
Minimum Board Thickness to Hole Diameter Ratio: 8.5:1
Surface Finished: ENIG

Thickness: 0.05um

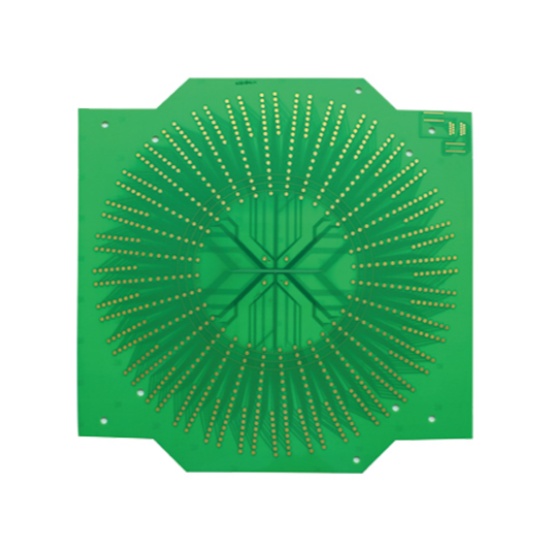

  The 10-layer 4th-level HDI PCB with buried and blind vias is one of the series of 4th-level HDI boards developed and produced by Shenzhen Huaxinsheng Circuit Co., Ltd., and also one of the 4th-level boards with blind and buried vias. This type of circuit board is made of Shengyi S1000-2M material and manufactured through processes such as laser drilling and immersion gold plating. The minimum hole diameter can reach 0.1mm, and the minimum line width/spacing is 200/110um. This HDI board is widely used in the field of semiconductor testing.

Supply of commonly used high frequency plate:

    ROGERS, TACONIC series, high frequency microwave PTFE wire board, Teflon, PTFE wire board

Common stock materials:

     Rogers 4000 Series: RO4350B / RO4003C Thickness: 0.2, 0.254, 0.308, 0.508, 0.762, 0.813, 1.524

     We need to confirm the delivery date to the supplier of the plate without inventory, the supplier has inventory delivery date in 1-5 days, no inventory need to confirm the delivery date to the supplier.

     All high frequency plates can be mixed with FR4 plates and PP, and the Rogers 4000 series can be combined with RO4350BPF.

     I. Rogers Rogers high frequency board material if:

RO4003C、RO4350B、RO4360、RO4533、RO4535、RO4730、RO4232、RO4233、RO3003、RO3006、RO3010、RO3035、RO3203、RO3206、RO3210、RO3730、RO5780、RO5880、RO6002、RO3202、RO6006

     II. TACONIC material models are as follows:

TLY-5A、TLY-5、TLY-3、HT1.5、TLX-0、TLX-9、TLX-8、TLX-7、TLX-6、TLC-27、TLE-95、TLC-30、TPG-30、TLG-30、RF-30、TSM-30、TLC-32、TPG32、TLG-32、TLG-34、TPG35、TLG-35、RF-35、RF-35A、RF-35P、RF-41、RF-43、RF-45、RF-60A、CER-10

    III. ARLON high frequency board materials are as follows:

AD255 C03099、AD255 C06099、AD255C04099、AD300C03099、AD300 C04099AD300 C06009、TC600、AD250 C02055C、TC350、MCG300CG、DCL220、CUCLAD 217LXCUCLAD 250GX、ARLON 55NT

   IV. Wangling and Taixing high frequency plate materials are as follows:

F4BK225、F4BK265、F4BK300、F4BK350、F4BM220、F4BM255、F4BM265F4BM300、F4BM350
