Application Field: Military
Material: RO4350B + TU-768
Number of Layers: 18L
Board Thickness: 3.2±0.32mm
Minimum Hole Diameter: Mechanical Blind Vias 0.15mm; Mechanical Holes 0.25mm
Minimum Line Width/Spacing: 75/75um
Surface Finished: ENIG

Thickness: 0.05um

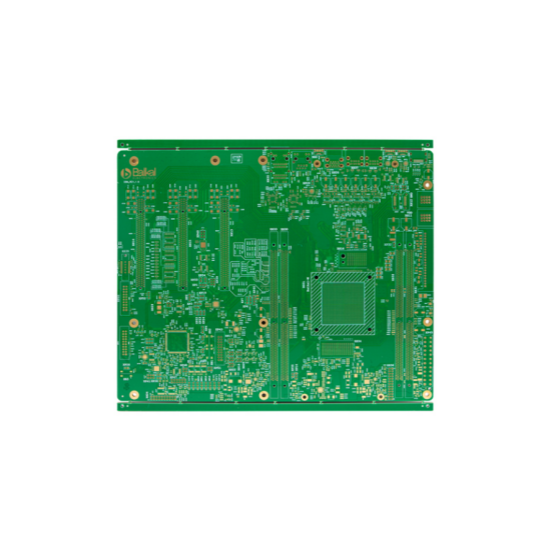

     The high-speed military-grade PCB with buried and blind vias is one of the series of military PCB circuit boards developed and produced by Shenzhen Huaxinsheng Circuit Co., Ltd. It is manufactured using Rogers RO4350B + Taiyao TU872SLK (Note: There's a slight discrepancy, the original text mentions TU-768 but here we adjust to TU872SLK based on the context of using specific high-performance materials, assuming TU872SLK might be a typo or specific material variant intended) materials, through processes such as two rounds of buried and blind via formation and three times of lamination. It is widely used in the military field.

Supply of commonly used high frequency plate:

    ROGERS, TACONIC series, high frequency microwave PTFE wire board, Teflon, PTFE wire board

Common stock materials:

     Rogers 4000 Series: RO4350B / RO4003C Thickness: 0.2, 0.254, 0.308, 0.508, 0.762, 0.813, 1.524

     We need to confirm the delivery date to the supplier of the plate without inventory, the supplier has inventory delivery date in 1-5 days, no inventory need to confirm the delivery date to the supplier.

     All high frequency plates can be mixed with FR4 plates and PP, and the Rogers 4000 series can be combined with RO4350BPF.

     I. Rogers Rogers high frequency board material if:

RO4003C、RO4350B、RO4360、RO4533、RO4535、RO4730、RO4232、RO4233、RO3003、RO3006、RO3010、RO3035、RO3203、RO3206、RO3210、RO3730、RO5780、RO5880、RO6002、RO3202、RO6006

     II. TACONIC material models are as follows:

TLY-5A、TLY-5、TLY-3、HT1.5、TLX-0、TLX-9、TLX-8、TLX-7、TLX-6、TLC-27、TLE-95、TLC-30、TPG-30、TLG-30、RF-30、TSM-30、TLC-32、TPG32、TLG-32、TLG-34、TPG35、TLG-35、RF-35、RF-35A、RF-35P、RF-41、RF-43、RF-45、RF-60A、CER-10

    III. ARLON high frequency board materials are as follows:

AD255 C03099、AD255 C06099、AD255C04099、AD300C03099、AD300 C04099AD300 C06009、TC600、AD250 C02055C、TC350、MCG300CG、DCL220、CUCLAD 217LXCUCLAD 250GX、ARLON 55NT

   IV. Wangling and Taixing high frequency plate materials are as follows:

F4BK225、F4BK265、F4BK300、F4BK350、F4BM220、F4BM255、F4BM265F4BM300、F4BM350
