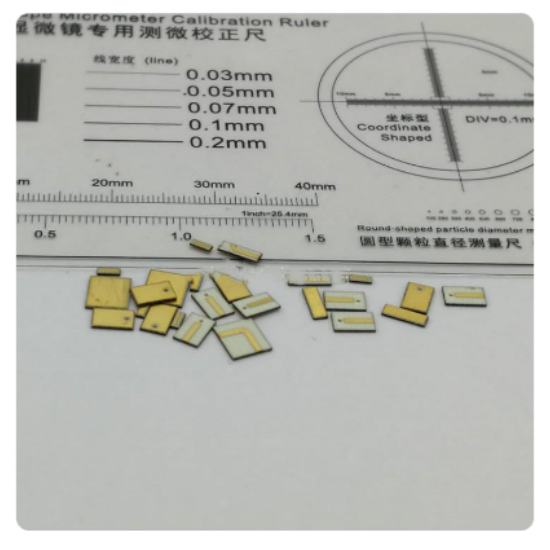

Product Name: Ultra-Small Size Rogers RO4350B High-Frequency Board
Material: Rogers RO4350B
Board Thickness: 0.3mm
Number of Layers: 2 layers
Dielectric Constant: 3.48
Dissipation Factor: 0.0004 (1 MHz), 0.0009 (10 GHz)
Dielectric Thickness: 0.254mm
Tg: >280
Td: 390
Flammability Rating: V-0
Thermal Conductivity: 0.69w/m.k
Density: 1.86gm/cm³
Surface Finish: Immersion Gold
Copper Thickness: Base copper 0.50Z, finished copper thickness 10Z
Application: Microelectronics
